Product Name

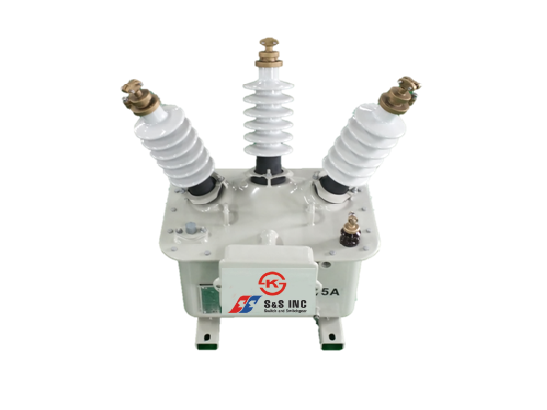

Metering Out Fit

Purpose

M.O.F(Metering Out Fit) is combined with maximum demand control watt-hour meter, maximum demand watt-hour meter and reactive volt-ampere meter (VAR) to measure watt-hour of 3-phase-4-wire extremely-high-voltage circuits

Characteristic

Features of metering out fit

The metering out fit has been miniaturized which makes transport and installation easy.
It has been exported as its technology has been recognized.
Overcurrent strength has been taken into account when designing this metering out fit. Therefore, the product has excellent overcurrent strength.

Classification	Description
Model	SMT – 5 A ~ 200 A
Rated Voltage	22.9 / √3 kV , 190 / √3 V
Current Ratio	5 A / 5 A ~ 200 A / 5 A
Burden	PT 25 VA , CT 25 VA
Accuracy Class	0.5 W
Over Current Factor	150 In , 75 In , 40 In
Insulation Level	50 / 150 / 170 kV
Service Area	Out Door Oil Filled Type

* Korean switchgear manufacturer, SnS Co., Ltd.

Primary Current(A)	Secondary Current(A)
5	5 A
10
15
20
30
50
75
100
150
200
